SFTP connection over SSH tunnel
2020-05-11T16:26:31.000Z.
This article describes how to connect to an SFTP server over an SSH tunnel.

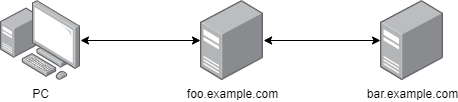

Assume you want to connect to the SFTP server (bar.example.com) which can only be accessed from a specific host (foo.example.com):

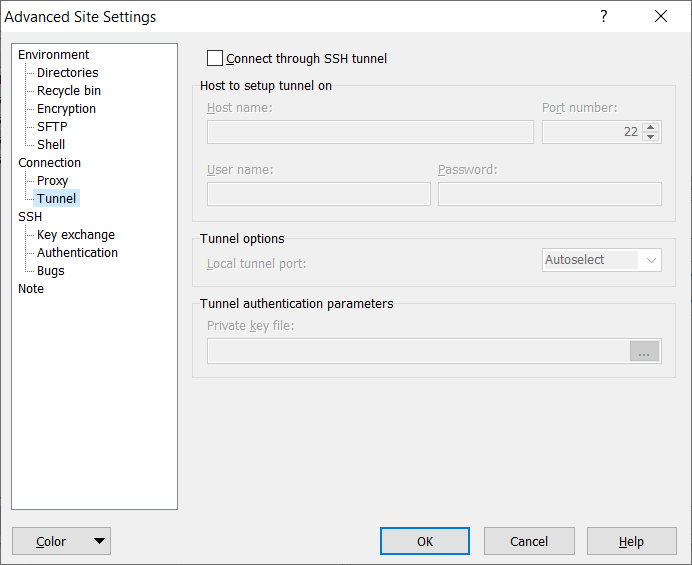

On Windows, WinSCP allows you to configure the connection to go through an SSH tunnel:
But WinSCP does not run on macOS, or you may be using a computer without a
graphical shell. You can use the sftp program to achieve the
same goal. For example:
sftp \ -o ProxyCommand='ssh \ -W %h:%p \ foo@foo.example.com' \ bar@bar.example.com
The command above means an SSH connection to foo.example.com
as the foo user will be established first, then the SFTP
connection to bar.example.com as the bar user
will be established over the SSH connection.
Another example:
sftp -i bar.key \ -P 8022 \ -o ProxyCommand='ssh -i foo.key \ -W %h:%p \ -p 18022 \ foo@foo.example.com' \ bar@bar.example.com
Similar to the previous example, however:
-
The SSH connection to
foo.example.comon port 18022 will be established as the userfoowith the identity filefoo.key. -
The SFTP connection to
bar.example.comon port 8022 will be established as the userbar, over the SSH connection, with the identity filebar.key.
-P (uppercase) option to specify the
port when using the sftp program, while you use the
-p (lowercase) option to specify the port when using the
ssh program.
